Environmental monitoring is an important component in the manufacturing of pharmaceutical and healthcare products. The activity embraces the assessment of viable microorganisms, airborne particles and physical controls (such as pressure, airflow, temperature etc.) Data assessment requires a holistic approach, assessing all data types and points across all cleanroom grades (especially interfacing areas).
There are some essentials relating to environmental monitoring that are periodically worth re-emphasising, not least the importance of risk assessment. This article benchmarks the basics to allow the reader to reassess their approach.
Environmental monitoring, when appropriately risk based, can provide an indication as to the effectiveness of control. Control is reflective of the appropriateness of design and the execution of procedures.
Simply increasing environmental monitoring does not increase control. Simply ‘monitoring into compliance’ when there are known hazards is not conducive to GMP.
Various considerations need to go into the planning of environmental monitoring. Considerations will be unique to the facility, and then account will need to be taken of product ranges and the intended patient population (with non-sterile products).
Non-sterile manufacturing generally presents a lower risk than sterile manufacturing. Within sterile products manufacturing, especially aseptic processing, the risks are greatest within EU GMP Grade and B areas. Based on this, the level of monitoring conducted should be commensurate to the risk.
The locations for environmental monitoring should be selected according to a risk assessment. This needs to account for potential hazards.
For example:
Such hazards should be evaluated for their respective risks. After any controls have been introduced, higher risk areas become targets for environmental monitoring.

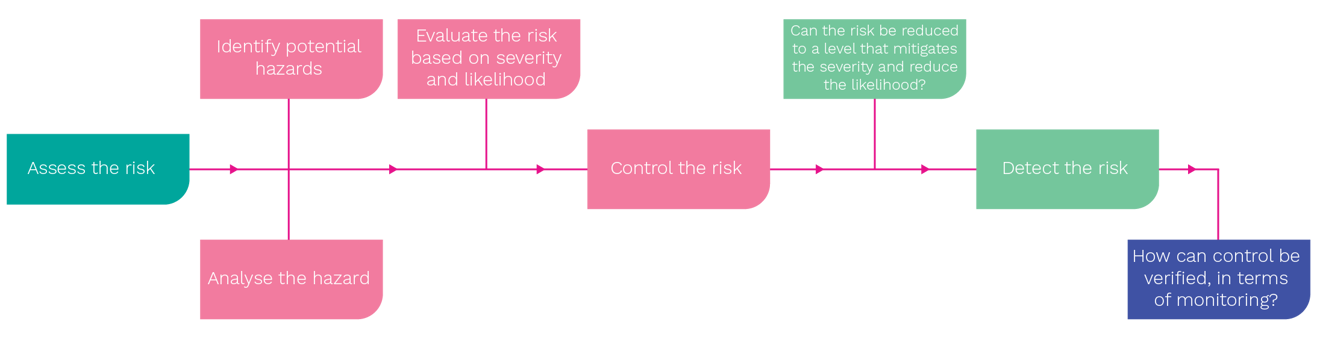

Risk assessment is concerned with the process captured in Figure 1.
Figure 1: Risk flow diagram for environmental monitoring
As well as the location for samples, there are other sampling related considerations.
It is useful to have a rationale for each of these:
Data should not simply be collected - it is important to trend data and assess the direction. Data should be studied below the alert level as this can provide an indication of future excursions.
There are different approaches for data trending, although graphical representations are often clearest.
Aside from the assessment of aseptic processing (where any Grade A count is of potential concern), individual results are rarely sufficient to give the true picture. Assembling a series of results at meaningful time intervals for specific locations is invariably necessary for understanding what is happening.
Being able to understand and discuss the overall picture is key.
Alert and action levels are necessary to contextualise the data. These should be set with some reference to historical data (a data set of sufficient size to be representative and one that has taken account of seasonality).
Alert and action levels can be numerical or based on some form of contamination frequency interval.
Alert levels indicate a potential drift from the norm. A position will be required as to how many drifts from the norm signal a concern e.g. three consecutive breaches. An action level is a clear breach of acceptable conditions and this normally requires an investigation and some form of remediation.
It is expected that alert levels will vary across time. There are many variables that can affect data. It is sometimes required that a proposal is made to increase the alert level. This can be justified on the basis that:
Appropriate alert levels can save resources by removing needless investigations into excursions of limits that have been set too low, enabling resources to be reassigned to higher risk activities.
Although statistics can be useful for limit setting and for trending, it is important not to blindly use statistics without understanding what the technique is and what the result means. It is also important not to seek to dilute the extent of any repeating contamination or any contamination in a key area (contamination at Grade A is always a risk no matter how it is expressed).
Environmental monitoring data is not simply about numbers. Regular characterisation of the microbiota is important as this can signal drifts from the norm. This is especially important when the drifts reflect increases with spore forming bacteria or fungi detected. This can signal cleaning and disinfection or item transfer concerns.
Periodic review of the data can aid understanding. Questions could include:
In answering such questions, bear in mind that within a pharmaceutical and healthcare facility a level of cleanliness is expected. It is not appropriate to justify poor practices and hygiene. The target should be for continued improvement.
There is obviously more to environmental monitoring than this short article can cover. However, the topics outlined and questions posed can help with an assessment of the appropriateness and robustness of an environmental monitoring programme, helping to achieve the objective of a more focused and relevant system.
